Range of continuous plastic/poly bag hole punching machines, capable of punching plastic bags and other film materials, perforating  round holes from 0.8 mm to 120 mm in diameter on moving webs, as well as special holes, pre-cuts, customized shapes and sizes, for materials up to a thickness of 800 microns. The most common applications are handles for bags, euroslot holes, laser micro-perforation, cuts and pre-cuts. Jenton offers a range of microperforation and hole punching equipment from Laserpin, and its own range Punchline .

Hole Punching Machines, Perforating Plastic/Poly Bags

Jenton International UK 9/10 Ardglen Industrial Estate, Evingar Road, Whitchurch, HAMPSHIRE  RG28 7BB  UNITED KINGDOM Tel:+44 (0)1256 892194            Fax:+44 (0)1256 896486               sales@jenton.co.uk
Jenton International is a part of the Jenton Group of companies specialising in the supply and support of technically innovative products for the Packaging, Banding, UV Curing, UV LED, UV Disinfection, Viscosity Control & Converting industries as well as the food automation packaging industry with Jenton-Ariana
PUNCHES The supporting structure, subject to the customer’s requirements, is set with different punches. Each punch consists of a punching head and die. The supporting structure LP is compatible with punches  producing both round and shaped holes. ROUND HOLES The punches consisting of the punching head and die, allow the production of round holes with a diameter of 2mm up to 50 mm. The dies are designed to last as long as possible, but they are at the same time the only consumable parts of the working process. Laserpin offers both disposable and sharpenable dies. The dies are usually designed for a complete circular cut, but dies for a partial cut only are available too, leaving the bid attached to the material. SHAPED HOLES Shaped holes are all non-circular perforations, such as triangles, squares, triangles, rectangles, euroslot holes, handles and much more. Customized shapes are available upon request.
LP
Hole Punch Double Sided High Speed for Moving Webs
    LPE2 Model number LPE2 is a double sided punch, with the tools mounted on both sides of the supporting structure , in order to double the punching frequency or to reduce the minimum transversal longitudinal distance between the holes. This model is perfect if a high material speed is required or a large number of holes is required. PUNCHES The supporting structure, subject to the customer’s requirements, is set with different punches. Each punch consists of the punching head and the die. The supporting structure LPE2 is compatible with punches producing both round and shaped holes. Inox punches are also available. The punching unit has a touch-screen electronic control, able to control all the available functions, such as managing double structures and controlling each punching head separately. ROUND HOLES The punches consist of a punching head and die, producing round holes from a diameter of 2mm up to 50 mm. The dies are designed to last as long as possible, but they are at the same time the only consumable parts of the working process. Lasperin offers both disposable and sharpenable dies. The dies are usually designed for a complete circular cut, but dies for a partial cut only are available too, leaving the bid attached to the material. SHAPED HOLES Shaped holes are all non-circular perforations, such as triangles, squares, triangles, rectangles, euroslot holes, handles and much more. Customized shapes are available upon request.
Large and Small Diameter Punching Unit
The SIDE UNIT is a side supporting structure designed for when a single hole is required at the side of the material. It has a maximum punching depth of 450 mm and it can actually cover all its market requirements. It is available in many configurations in order to meet different installation and punching needs. PUNCHES The supporting structure, according to the customer’s requirements, is set with different punches. Each punch consists of the punching head and the die. The supporting structure SIDE UNIT is compatible with punches producing both round and shaped holes. Inox punches are also available. ROUND HOLES The punches consist of a punching head and die, producing round holes with a diameter of 3 mm up to 120 mm. The dies are designed to last as long as possible, but they are at the same time the only consumable parts of the working process. Laserpin offers both disposable and sharpenable dies. The dies are usually designed for a complete circular cut, but dies for a partial cut only are available too, leaving the bid attached to the material. SHAPED HOLES Shaped holes are all non-circular perforations, such as triangles, squares, triangles, rectangles, euroslot holes, handles and much more. Customized shapes are available upon request.
The LP is the smallest model in the Laserpin family, able to form holes in a moving web on all types of plastic film up to a maximum thickness of 800 microns. For best results the speed of the film should be well controlled and constant. With easy installation and adaptability, the tool can be moved along the structure, giving easy quick alignment of the punch heads. The punch action is controlled pneumatically through specially designed control valves.
Hole Punch Machine for plastic bags single sided moving websHole Punch Machine for plastic bags single sided moving webs
Micro Perforation Laserpin also offer complete range of hot and cold microperforation units with hole sizes varying from 0.5 mm – 2.8 mm diameter. Cold Microperforation  Cold Perforation technology, original applications date back in the 1960’s, still offering an excellent value for money solution. In simpler units the material is propelled by the motion of the film, when a more precise result is required perforators are motor driven.
Plastic Bag Hole Punching Machine perforating film, paper and aluminium foil. Plastic Bag Hole Punching Motorised Cold Micro Perforation Unit ensures accurate diameter holes in thicker materials Plastic Bag Hole Punching Hot Micro Perforation Unit, infrared heaters allowing the needle to heat uniformly, optimising perforation of thermoplastic film. Plastic Bag Hole Punching Hot Microperforation Unit using infrared lamps, with three settings. It can operate at line speeds of over 250 m /min.
+44 (0)1256 892194
Capability in film converting equipment, hole punching and bag sealing
  JENTON CONVERTING
Home Products Events Enquiry Contact Blog
Plastic Bag Hole Punching Machine Single Sided for Moving Webs
MF85 Plastic Bag Hole Punching Cold Microperforation Unit
MF124 Plastic Bag Hole Punching Motorised Cold Micro Perforation Unit
Microtex/S Laserpin Hot Perforation Poly Bag Hole Punch Machine
Star 2 Laserpin Hot Perforation Plastic Bag Hole Punch Machine
The top of the range unit , heated using infrared lamps, with three settings. It can operate at line speeds of over 250 m /min. The unit also adapts to the speed of the film tracking the film, guaranteeing perfect holes in thermoplastic material.
The basic model in the Laserpin hot perforation range. The heater is operated by infrared heaters allowing the needle to heat uniformly, optimising perforation of thermoplastic film. This unit is recommended for use with any thermoplastic film from 16 -25 micron thick at a needle density of 4 to 16 perforations/ cm2
Simple, efficient and  easy to install, the roller is propelled by the motion of the film, creating perforations in film, paper and aluminium foil. The two control knobs allow the user to adjust the depth of penetration therefore determining the diameter of the hole. Also pneumatically  controlled allowing the user to remotely manage the perforating process
Hot Micro Perforation The needles are mounted on insulated interchangeable cylinders, allowing the user to perforate mono or bi-oriented film. When perforating with hot needles the hole is caused by melting the film, forming a neat hole. This technology has been developed since the 1980’s.
Part of the Cold Perforation unit family, this unit has an oversized needle shaft structure to ensure accurate diameter holes in thicker materials, also suitable for use were high density perforations are required ( up to 48 perforations /cm2). The unit is motorised allowing the user to match the speed of the perforator to that of the film, enabling a precision result.
Anilox Ink Roller Cleaning
Anilox Roller Cleaning
Viscosity Ink Controls Hole Punching Machines Poly Bag Machines
Viscosity Control
 Hole Punching
Poly Bag Machine
In the USA? - Please contact our colleagues at Quality Converting Products
single hole punch unit for intermittent web operation
Click thumbnail to enlarge and for further details:
Intermittent Punchette
Modified Continuous Peer-Sol ®
hole punch for punching a line of holes across a moving web single hole punch unit
Ejecto Punchette
high speed super hole punch hole punch for hangar shaped holes

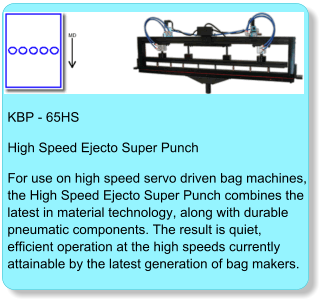

High Speed Ejecto Super Punch

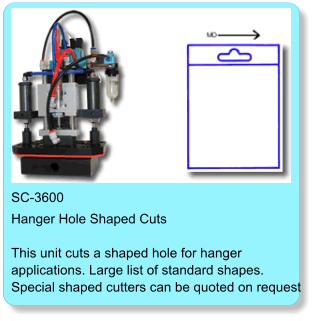

Hangar Hole Shaped Cuts
